2007 Honda Shadow 1100 Review

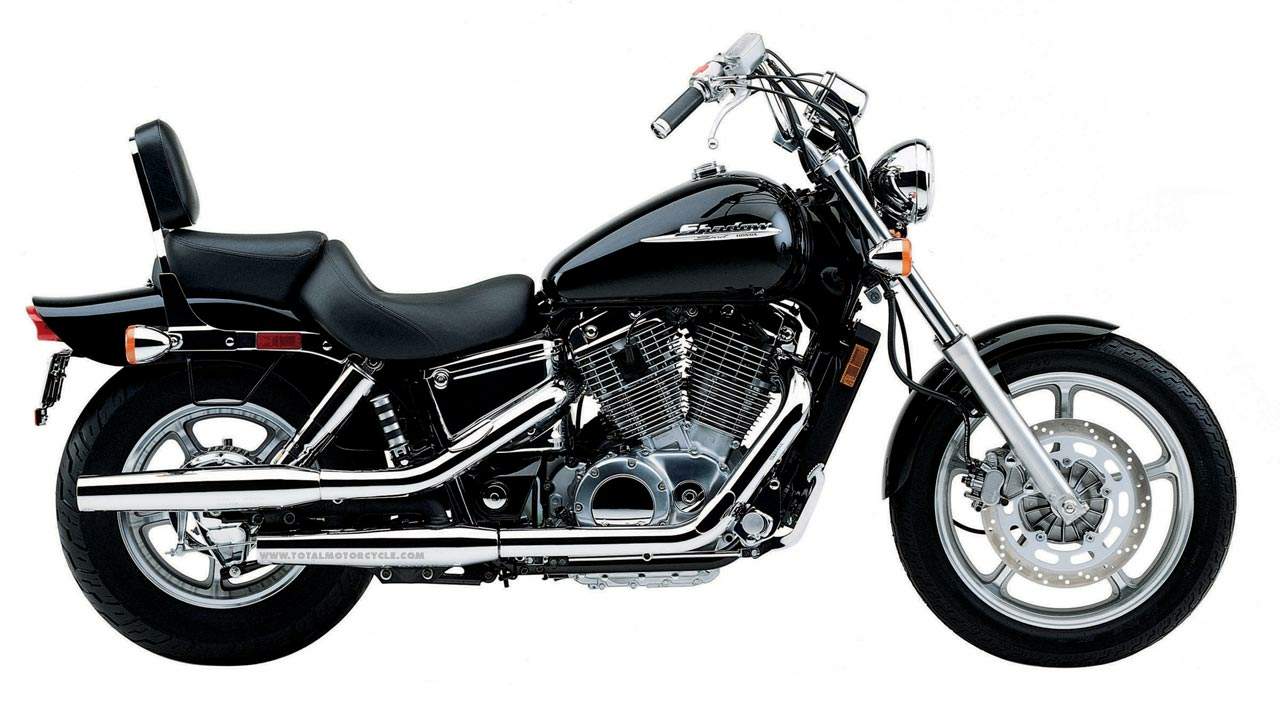

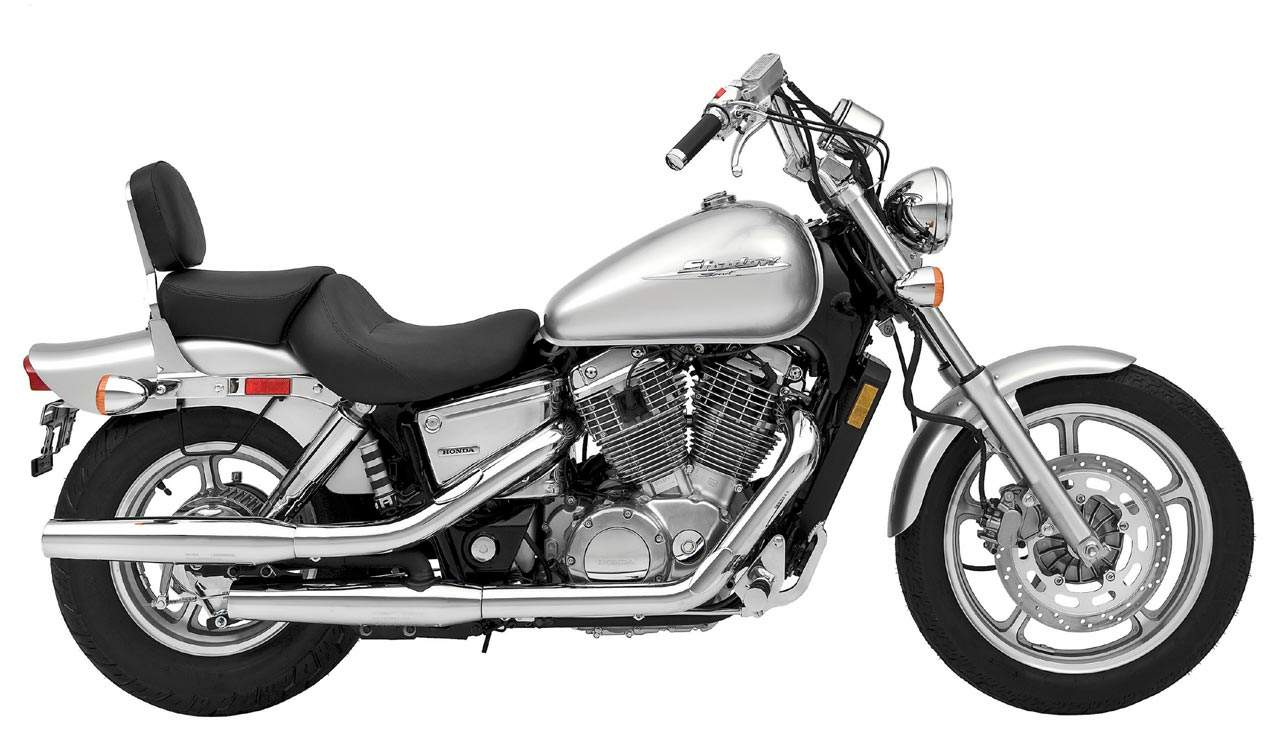

Honda Shadow Spirit
| Make Model | Honda VT 1100C Shadow Spirit |
| Year | 2007-09 |
| Engine | Four stroke, 45�V-Twin, OHC, 3 valves per cylinder. |
| Capacity | 1099 cc / 67.1 cub in. |
| Bore x Stroke | 87.5 x 91.4 mm |
| Compression Ratio | 8.5:1 |
| Cooling System | Liquid cooled |
| Oil Capacity | 3.8 L / 4 US quarts |
| Induction | 2 x 36 mm Keihin carbs. |
| Ignition | Solid-state digital - two spark plugs per cylinder |
| Starting | Electric |
| Max Power | 67 hp / 49 kW @ 5500 rpm |
| Max Torque | 91 Nm / 9.27 kgf-m / 67 lb-ft. @ 2700 rpm |
| Transmission | 5 Speed |
| Final Drive | Shaft |
| Front Suspension | 41mm Telescopic forks, 150mm wheel travel |
| Rear Suspension | Dual shocks, spring preload adjustable, 100mm wheel travel |
| Front Brakes | Single 316mm disc 2 piston caliper |
| Rear Brakes | Drum |
| Front Tyre | 110/90-19 |
| Rear Tyre | 170/80-15 |
| Seat Height | 730mm / 28.7 in. |
| Dry Weight | 250 kg / 553 lbs |
| Fuel Capacity | 15 Litres / 3.9 US gal |
The Shadow Spirit is a cruiser taking its styling cues from classic choppers of old. A pullback handlebar, bobbed rear fender, cruiser footpegs and a powerful V-twin engine make this as fun to stare at as it is to ride.
Thanks to a brawny 1099cc 45� V-twin engine, the Shadow Spirit delivers performance to match its classic styling and low-slung good looks.
Features & Benefits
New for 2005
� New Candy Red color joins classic Black.
Engine/Drivetrain
� The Shadow(r) Spirit's offset-dual-crankpin, smooth-running 1099cc 45� V-twin engine pumps out massive low-end and mid-range power.
� The engine's broad power delivery and five-speed transmission offer exceptional rideability around town and on the open road.
� Three-valve cylinder head design utilizes two spark plugs per cylinder for efficient combustion and high power output at all rpm.
� High-capacity nine-plate clutch with cable operation.
� Maintenance-free hydraulic valve-lash adjusters make routine valve adjustments a thing of the past.
� Other maintenance-free features include digital ignition and automatic cam-chain tensioners.
� Dual 36mm CV carburetors offer crisp throttle response at all rpm.
� Reliable electric-starter system.
� Shaft final-drive system provides smooth, virtually maintenance-free operation.
SUSPENSION
� Specially designed steel frame gives the Shadow Spirit(tm) a long, low custom stance.
� Large, 41mm extended front fork provides 6.3 inches of plush yet responsive travel.
� Dual chromed shocks feature an advanced internal valve system for a comfortable ride.
� Large-diameter front disc brake with twin-piston caliper combined with a heavy-duty drum rear brake provide excellent stopping power.
� Strong and lightweight five-spoke cast alloy wheels.
� Massive, 170/80-15 rear tire offers a wide footprint and a radical custom look.
� Relaxed, comfortable riding position results from a long, low chassis and low, 28.7-inch seat height.
Additional Features
� Large, 4.2-gallon fuel tank offers extended cruising range.
� Handlebar switches and controls use internationally approved ISO graphic symbols.
� Custom saddle and padded passenger backrest offer a high level of rider and passenger comfort.
� Powerful halogen headlight.
� Convenient push-to-cancel turn-signal switch.
� Comfortably padded large-diameter handgrips.
� Polished aluminum handlebar switch housings and triple-clamp assembly.
� Chromed side panels and dual staggered mufflers.
� Maintenance-free YTX battery.
� Transferable one-year, unlimited-mileage warranty; extended coverage available with a Honda Protection Plan.
� Ownership includes one-year complimentary membership in the Honda Rider's Club of America(tm) (HRCA(r)). Benefits include: discounts, travel benefits, roadside assistance, one year complimentary subscription to Honda Red Rider(tm) magazine, access to HRCA Clubhouse Web site (www.hrca.honda.com), access online to Honda Common Service Manual. For HRCA details, call 1-800-847-HRCA.
Available accessories
� Touring accessories: Cruiser Shield, Magnetic Tank Bag (Black).
� Chrome accessories: Backrest with Pad, Rear Carrier (two types), Radiator Trim, Backrest Trim, Clutch Lever Bracket, Lever Bracket Holders, Horn, Handlebar Levers, Oil Filler Cap, Front Fender Ornament.
� Billet accessories: Backrest Trim, Front Tank Mount Cover, Driveshaft Bolt Cover, Oil Filler Cap, Ignition and Clutch Cover Set, Master Cylinder Cap, Oil Dipstick, License Plate Frame.
� Additional accessories: Cycle Cover.
Review
1100cc V-Twin Motorcycles Compared: Yamaha Virago vs. Honda ACE, Aero and Spirit
The 1100cc V-twin motorcycles give you four ways to ride the road to happiness. Yamaha's venerable Virago is still a favorite, but Honda now has three challengers -- the Aero, the American Classic Editon (or ACE) and the Spirit. There should be one for any
From the April, 2009 issue of Motorcycle Cruiser
|1100S98 Xl 1998 4 Bike Group Shot View
Photography by Fran Kuhn
It has been less than two years since we last lined up the various 1100-class tandem V-twins against one another; but Honda has shuffled the deck in this class twice since then. Last year it introduced the Shadow Spirit, an updated version of the original Shadow 1100. The Spirit uses two offset crankpins to balance the 45-degree twin's power strokes, eliminating most of the vibration. This year Honda introduced the Aero, a variation of the best-selling Shadow American Classic Edition (A.C.E.), which returns to the line. The A.C.E. and Aero use a single-crankpin variation of the same basic engine design. The final contender is Yamaha's stalwart Virago 1100. The familiar 60-degree, air-cooled V-twin isn't too different from the first Virago introduced in 1981.
Assembling the bikes for a head-to-head comparison turned out to be time well spent, since it provided some surprises. Ride any one of them around by itself and it seems not too different from the others. But run them side-by-side, or jump off one and onto another, and some pretty substantial differences emerge.
Engine & Performance
1998 Honda Ace Side Left View
Honda 1100 A.C.E.: Price...
read full caption
1998 Honda Ace Side Left View
Honda 1100 A.C.E.: Price - $9199-9599; displacement - 1099cc; wet weight - 622 lb;seat height - 28.7 in.; wheelbase - 65.0 in.; fuel capacity - 4.2 gal.; fuel mileage: 38.3 mpg; quarter-mile acceleration - 14.92 sec., 86.2 mph.
This is the area with the biggest surprises when the four bikes are directly compared. Ride each one alone, and the A.C.E. might seem a little slower when passing a truck on a hill. But put the bikes side-by-side on the same hill, in top gear with open throttles and the Virago bolts away from the others. The Aero pulls away ever-so-slightly from the Spirit (another surprise) and the A.C.E. lags behind. The order is the same when you start in first and work through the gears, except the Spirit pulls ahead of the Aero. The Virago makes its acceleration edge with gearing and rpm. It revs much higher than the 5000 power peak of the Aero and A.C.E., and is geared lower too. However, its two-valve engine also makes good power down below 2000 rpm.
On California "winter" mornings, all four would come to life without using the handlebar-mounted choke controls; though the A.C.E. took the longest to warm completely and felt just a little lean at lower throttle openings than the others. Fuel mileage ranged from the Spirit's 42.5-mpg average to the 35.1-mpg average of the Aero. The Virago averaged 40 mpg and the A.C.E., 36.6.
Drivetrain
Though some riders experienced shifting problems with one bike or another, no one motorcycle consistently missed shifts for everyone. Some shift-lever adjustment would doubtlessly remedy the problems for those who had them. No one noted complaints about ratio staging, neutral finding or lash, either. The Honda clutches were very slightly preferred to the Virago's, though the Virago was still very good.
Comfort
1998 Honda Spirit Side Right View
Honda 1100 Spirit: Price...
read full caption
1998 Honda Spirit Side Right View
Honda 1100 Spirit: Price - $8599-8899; displacement - 1099cc; wet weight - 592 lb; seat height - 28.5 in.; wheelbase - 65.0 in.; fuel capacity - 4.2 gal.; fuel mileage: 42.5 mpg; quarter-mile acceleration - 13.86 sec., 94.1 mph.
Each bike has its own unique ergonomic arrangement. The Spirit is classic American cruiser with a buckhorn bar and feet forward positioning. The A.C.E. moderates that with a lower bar and a more forward saddle. The Aero has the only floorboards and a turned-back bar. The Virago has its own odd handlebar shape -- which looks funky but fits most riders well -- and puts the footpegs more rearward than the others. Although different body types rated different bikes tops in this area, the Virago was most frequently picked as the most comfortable. One rider picked the A.C.E. The Aero bent some riders the wrong way, prompting mild criticism of the floorboard arrangement and handlebar.
We think the best saddle in the class belongs to the standard model Virago. The button-tuck design on the Special model we rode is thinner and has more pressure points than the plain standard-model saddle. The seat on the Virago Special finishes just behind the other three seats in this group. Smaller riders generally got along better with all of the saddles than the bigger riders; though the Aero ended up with slightly higher marks overall than the A.C.E. and Spirit, which tied for second.
Though the A.C.E. and Aero vibrate more than the others, nobody complained. Suspension compliance varied from the soft rates of the Virago to the firm settings of the A.C.E., which most felt had the poorest ride compliance. The other three were rated favorably. Adding a passenger might overload the Spirit and Virago more than the others.
Handling
1998 Honda Aero Side Left View
Honda Aero 1100: Price -...
read full caption
1998 Honda Aero Side Left View
Honda Aero 1100: Price - 9699; displacement - 1099cc; wet weight - 666 lb; seat height - 28.5 in.; wheelbase - 66.1 in.; fuel capacity - 4.2 gal.; fuel mileage - 35.1 mpg; quarter-mile acceleration - 14.73 sec., 87.5 mph.
None of these four machines become awkWard in any particular mode, though the Aero's bar ends can hit your legs in tight turns. The Aero also has the most controlled suspension and is the most stable. Though you don't have to muscle it, it does require more forceful steering inputs than the others. Some testers felt the handlebar shape was a bit awkWard while riding through the mountains.
The A.C.E. is almost as stable, but turns more easily. No one complained about its handlebar. Its suspension may be the best compromise of comfort and control here. It received high marks for precision, suspension and steering ease.
The Virago has the softest suspension settings, which means it bounds around slightly in corners. It also suffers from the most shaft effect. Shutting the throttle in a turn made it drop more than the others. The Yamaha has the quickest, most responsive steering, which made points in twisty sections.
Though a little tauter than the Virago, the Spirit's suspension is not as well controlled as the other two Hondas. The combination of a high and wide handlebar, semi-soft suspension, and semi-slow steering response, left all riders lukewarm about the Spirit's handling manners. No one liked it as much as the other three, and though the order above it differed, the Spirit was universally last. However, no one felt it handled badly, either -- they just preferred the others.
All four are handy and easy to balance at low speeds, withstand side winds well, and offer reasonable cornering clearance.
Braking
All three Hondas offer excellent feel and good power from their similar, single-disc front brakes; thanks to the twin-piston caliper design. The Virago gets even greater power from two discs up front, with good control from the double-action calipers. The rear brakes (drums on the Spirit and Virago, discs on the A bikes) on all four performed well, too.
Styling & Finish
1998 Yamaha Virago Side Right View
Yamaha Virago 1100: Price...
read full caption
1998 Yamaha Virago Side Right View
Yamaha Virago 1100: Price - $7599-7799; displacement - 1063cc; wet weight - 536 lb; seat height - 28.1 in.; wheelbase - 60.0 in.; fuel capacity - 4.4 gal.; fuel mileage - 40.0 mpg; quarter-mile acceleration - 12.72 sec., 95.7 mph.
In terms of appearance, these bikes were generally ranked in alphabetical order: Aero, American Classic, Spirit, Virago. The retro styling of the new Honda, particularly in the orange/cream paint scheme we rode, received almost universal approval. The A.C.E. was close. Most people like the Spirit better than the "1970s post-industrial" look of the Virago. The Special version of the Virago we tested has more chrome than the standard model; but some of it seems excessive or, as on the unpolished rear drive housing, wasted. The paint quality got high marks all around. The Spirit was a 1997-spec machine, which differs graphically from the '98 model but is otherwise the same.
Details
Since it was designed in an age when motorcycle makers were competing to see who could include the most features, the Virago is loaded. It includes a centerstand, tachometer, self-canceling signals, a reserve fuel switch on the handlebar, and dual horns, which actually provide enough volume to be heard. The Yamaha's fork lock is integrated into the ignition atop the fork; which is convenient for both the owner and the thief, who only has to subvert one lock to steal the bike. The Hondas use separate fork locks (operated by the ignition key) and locate the ignition locks behind the engine on the left. The Hondas have self-adjusting hydraulic valve trains. The Spirit comes with saddlebag guards, though they are available for the rest. The A.C.E. currently has the most customizing options, but we expect the Aero to catch up quickly. The Virago, however, lags in this area.
Bottom Line
Once you determine your priorities, picking a tandem 1100cc V-twin gets easier. There are two areas where there are major differences: looks and performance. The Virago is significantly faster than the others and, to most eyes, the homeliest. If the styling doesn't grate on you and the looks of the Aero or A.C.E. don't raise your pulse rate, the Virago's functional advantage -- and low, low price -- make it an easy choice. If styling is a prime consideration, the Aero or A.C.E. probably top your list. The added flair and power of the Aero easily justify its price. If you want cleaner styling than the Virago offers, but still want the smoothness of the offset crankshaft, the Spirit might be your Shadow -- though we'd recommend riding an Aero before you dismiss it as too buzzy. This class offers no dominant player, just a series of attractive choices; none of which have any glaring functional flaws. No matter which one you choose, you'll find someone on our staff who agrees with your choice.
RIDING POSITIONS
1100S98 Lg 1998 4 Bike Group Shot Front View
Jamie Elvidge: If I could morph the Virago's engine with the Aero's look and the A.C.E.'s ergonomics, I might get a perfect 1100 V-twin. The Virago tops my list in the performance category. It's quick and easily controlled, even with its spongy suspension. I like to get some bang for my buck, so the price here is definitely right too. Yamaha's time-honored twin could take the whole cake, I believe, with a trip to the restyle shop. The Aero, although undeniably attractive with a ready-to-pounce profile, is a little too long and low for my taste. I felt like I needed glasses to read the speedo and my lower back didn't appreciate my hands and feet being anchored so far forward. The A.C.E. gave me the best fit. It may lack power, but the comfort combined with taut suspension (something I prefer), bearable vibration, and above-average looks make it my pick for a long haul.
Evans Brasfield: Leave it to Honda to introduce the Aero and eviscerate the competition, even if two-thirds of those competitors are also from Honda. The A.C.E. had the looks department locked up until the Aero appeared with its cool headlight/instrument cluster, which cleaned up the handlebar lines and set the tone for the whole long look of the bike. What about the fishtail pipe? In this case, size definitely matters, and the Aero's exhaust note clinches the decision.
Usually, I lean toward function over aesthetics in a bike, but this time I didn't have to compromise too much. Although the Virago has the power, the Yamaha has a face only a mother could love. Yeah, I know it's got a great personality, and with a few suspension mods, it would run away from the Aero. Still, the Aero is the machine I'd rather escort to Cruiser Night at the local watering hole. Call me shallow, but good looks are important. Having the second-best performance only sweetens the prize.
Honda, with its relentless improvements, has a firm grip on the 1100 class -- for now. A Star-ized Virago 1100 would really shake things up.
Brasfield, Motorcycle Cruiser's former associate editor, can be reached through his website: Evans Brasfield.
Art Friedman: As Evans requested, I'll call him shallow. A pretty face has turned his head. Sure the Aero is a striking companion for a dalliance at the drive-in; but for a lasting relationship, the comfort, performance, and handling of the Virago win me over.
I wouldn't kick the Aero out of bed -- er, the garage -- for eating crackers, however. It is beautiful, and I enjoy it when trolling around town. It should also put to rest that tiresome saw about Japanese cruiser styling being an imitation. This motorcycle sets new standards for flawlessly executed retro looks. Though the flat floorboards, turned-back handlebar and bucket saddle are just fine when motoring down Main Street, it gets old after a 100 miles or so.
The Virago continues to be a pleasure when no one else is looking. It's more confident on a challenging road or in heavy traffic. It's more comfortable, particularly on a long ride. And like the old song says, "She's ugly, but she sure can cook." The Aero's performance gains leave the A.C.E. in its dust. The A.C.E. is a pretty but uninspired ride. The Spirit falls behind as well, though it remains a pleasant-enough machine.
I agree that Yamaha owes it to cruiser enthusiasts everywhere (and to itself) to give the Virago 1100 the Star treatment. Don't change the engine performance one iota, or mess with that wonderful chassis too much. Just give her some clothes that she can flaunt on Saturday night. -- E-mail Friedman at ArtoftheMotorcycle@hotmail.com.
Richard Cicchino: You won't be disappointed if you buy any one of these motorcycles. Spending two days on the road with these four machines was an absolute blast.
The Aero has eye-catching good looks and the most power of the Hondas. It has neat features like the speedo and the exhaust note, but the floorboard position makes long rides a bit uncomfortable.
The A.C.E. has classic styling and was the most maneuverable, but it lacks the power of the Aero. (Don't believe Honda's claim of a five-horsepower difference; it feels like 10 or 15.) The Spirit rounds out Honda's line nicely, with great Honda quality and a proven track record.
Then there is Yamaha's Virago, a bike that has been around forever for good reason. With proven reliability, great power, wonderful handling and comfy ergonomics, it was also the cheapest of the bunch. If I were buying one of these 1100 V-twins, it would be the Virago. With the extra cash, I'd buy some neat goodies for the bike and myself.
Cicchino is a veteran rider and a California Motorcycle Safety Program instructor.
Kevin Smith: I have two favorites in this group, depending on how we define our terms. Honda's lovely new Aero sweeps the beauty pageant, no question. The period motif is handled deftly, with deeper fenders that still look graceful and well-balanced. The detailing is clean, and the finish work is impeccable. I especially like how the motorcycle seems to drop down out of the way of your view in front. Snuggling the speedo into the headlamp shell feels much less intrusive than propping it up in my face, as the other Shadows do.
But the Aero isn't my first choice when it's time to ride, especially if the route has a curve or two along the way. Then, Yamaha's venerable Virago easily seduces me with its narrow, close-coupled feel, and class-crushing horsepower. In this company, it is far and away the sportiest, fastest, most responsive player. That may not rate high on everyone's priority list. But I'm not prepared to give up the inherent benefits of speed and maneuverability a motorcycle offers in traffic, nor the unbridled delight of swinging through corners with some enthusiasm, just to make a styling statement. (But one look at the gaudy, overdone splashing of chrome geegaws all over the Virago would tell you that.) The high but narrow handlebar gives fine control into and out of corners, throttle response is lively, and the Yamaha does pretty much whatever you ask of it -- just like a modern motorcycle should. That's what catches my eye.
Source motorcyclecruiser.com
